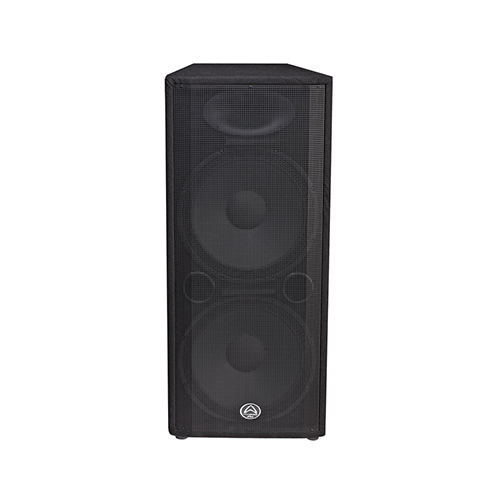

KINETIC 215

The Kinetic 215 is a passive quasi 3-way loudspeaker that offers the next generation of legendary performance that Wharfedale Pro has become world famous for. The Kinetic 215 offers professional features such as a 1” compression driver, 15” custom designed woofers and PTC HF protection. Two Speakon/Jack Combination inputs are parallel wired for flexibility to guarantee seamless integration with both professional and beginner equipment.

The Kinetic Series is suitable for a wide range of applications, they are an ideal choice for small bands or portable DJ’s that need heavy duty sound reinforcement on a budget.

SPECIFICATIONS

MODEL KINETIC 215
Power Handling
Continuous 300W
Peak 1200W
Programme 600W
Nominal Impedance 4Ω
Max SPL (Calculated) 131dB
LF Size 381mm / 15"
LF Voice Coil 1.5"
HF Voice Coil 25.4mm / 1"
HF Waveguide Type Elliptical
HF Waveguide Exit 30.5mm / 1.2"
HF Diaphragm Material Phenolic
HF Protection PTC
Enclosure Finish Black Carpet
Grille Material & Finish 1.2mm Steel
Handles 2 On Sides
Input Connector Type 2x Speakon + 0.25" Jack
HPF Output Connector Type
Net Weight 25.4 Kg/ 55.9 lbs
Gross Weight 29.2 Kg/ 64.2 lbs
Dimensions (Unpacked)
H 1004mm/39.53"
W FRONT/REAR 437.4/273.5mm/17.22"/10.78"
D 330mm/12.99"
Dimensions (Packed)
H 1172mm/46.14"
W FRONT/REAR 538/324mm/21.18"/12.76"
D 400mm/15.75"
Configuration Quasi 3-way
Frequency Response (±3dB) 45-20kHz
Sensitivity (1W @ 1m) 100dB
Nominal Horizontal Coverage (@1kHz) 90°
Nominal Vertical Coverage (@1kHz) 60°
LF Driver Number ZD-05400-01R
HF Driver number ZD-53200-01R
Enclosure Material and Thickness 12mm / 0.5" particle
Volume 0.20m3
